What are Roof Trusses?
A roof truss is a structural framework that supports the roof of a building. It is made up of a combination of timbers or steel members that are connected together to form triangular units. These triangular units create a rigid and stable structure, allowing for the distribution of weight from the roof evenly onto the walls.
Types of Roof Trusses

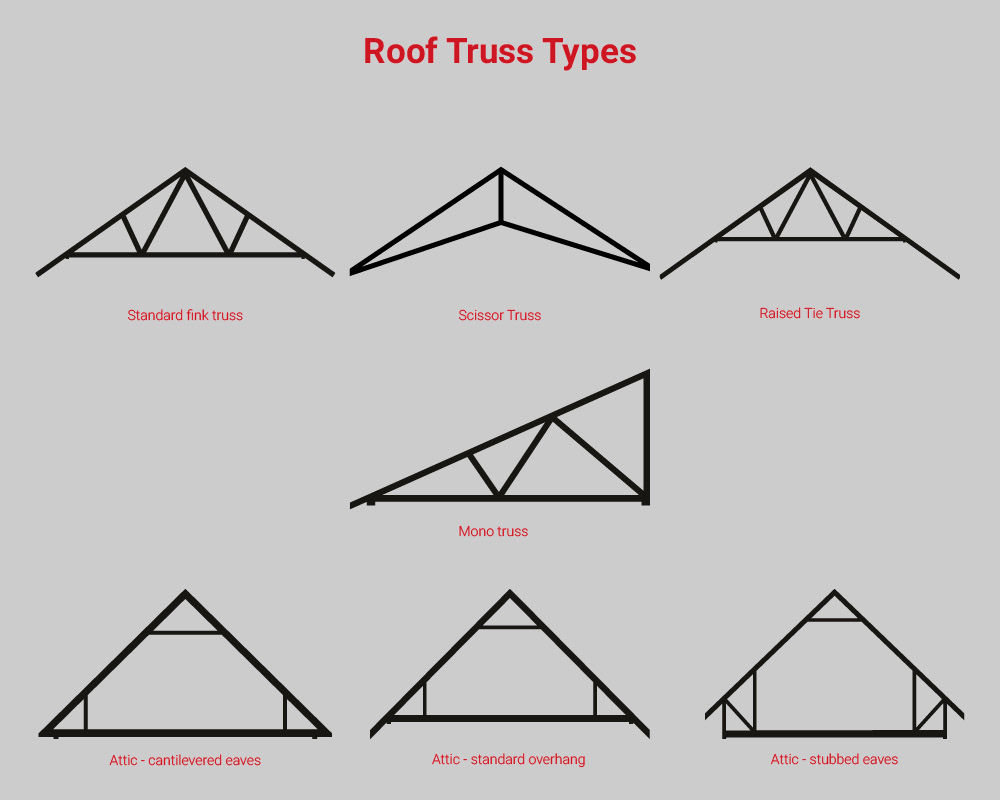

Roof trusses come in various designs, each offering specific benefits based on the requirements of the building. Here are some common types of roof trusses:
1. King Post Truss
The king post truss is one of the simplest and oldest types of truss designs. It consists of a single vertical member, called the king post, that supports the weight of the roof's ridge. This truss works well for smaller spans and provides a cost-effective solution.
2. Queen Post Truss
The queen post truss is similar to the king post truss but features two vertical members, known as queen posts, instead of one. These additional posts offer increased stability and allow for longer spans. Queen post trusses are commonly used in residential and commercial buildings.
3. Scissor Truss
The scissor truss is characterized by its curved top chords, creating an arched shape. This design provides a cathedral-like ceiling effect, enhancing the visual appeal of the space below. The scissor truss is commonly used in churches, cathedrals, and residential buildings where a spacious interior is desired.
4. Howe Truss
The Howe truss is a popular choice in many modern construction projects. It features vertical members between the top and bottom chords, along with diagonal braces that form a series of triangles. This design offers excellent strength, making it suitable for various roof spans and heavy-load applications.
5. Gambrel Truss
The gambrel truss is commonly associated with barn-style roofs. It consists of two unique slopes on each side, allowing for a greater amount of usable space in the upper section of the building. Gambrel trusses offer a distinct aesthetic appeal and are often used in residential and commercial buildings with a traditional or rustic design.
6. Flat Truss
As the name suggests, the flat truss has a horizontal top and bottom chord, resulting in a flat or nearly flat roof. It is a simple and economical option that is often utilized in industrial buildings, garages, and sheds.
7. Bowstring Truss
The bowstring truss is known for its gentle, curved upper chord resembling a bow. It is commonly used in buildings with wide spans, such as sports arenas, warehouses, and airplane hangars. This design allows for a larger open space without the need for additional support columns.
8. Pratt Truss
The Pratt truss is a widely employed truss design, characterized by its diagonal web members that slope towards the center of the span. This truss type is versatile and can be used for various building applications, including bridges, residential roofs, and industrial structures.
Conclusion
Understanding the different types of roof trusses is crucial when planning the construction or renovation of a building. Each truss design has its own advantages and is suitable for specific structural requirements. By selecting the right roof truss type, you can ensure the stability, durability, and aesthetic appeal of your building's roofing system.
