Types Of Retaining Walls

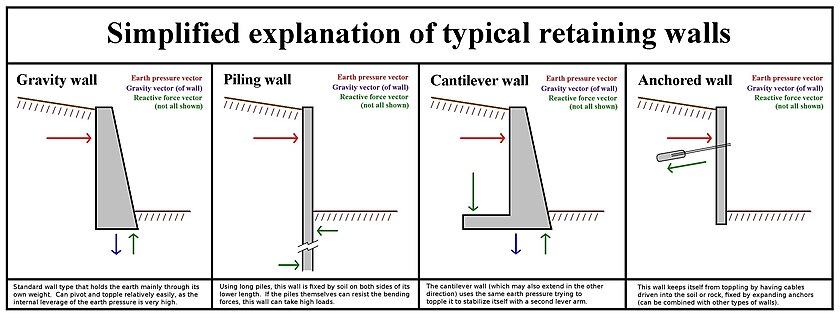

What are Retaining Walls?

A retaining wall is a structure designed and constructed to hold back or support soil, rock, or other materials, preventing them from eroding or sliding down a slope. These walls are commonly used in landscaping and construction projects to create terraces, level plants, and prevent soil erosion.

Gravity Retaining Walls

One of the most common types of retaining walls is the gravity retaining wall. These walls rely on their mass and weight to resist the pressure of the soil or other materials behind them. Gravity retaining walls are typically made of heavy materials such as concrete, stone, or brick. The weight of the wall creates enough resistance to hold back the soil or other materials and prevent them from sliding.

Cantilever Retaining Walls

Cantilever retaining walls are another popular type of retaining wall. These walls are designed with a horizontal base or footing that extends back into the soil. The weight of the soil on the horizontal base helps to counteract the pressure from the soil or other materials pushing against the wall vertically. This type of retaining wall is typically made of reinforced concrete and can provide excellent structural stability.

Sheet Pile Retaining Walls

Sheet pile retaining walls are commonly used in areas with soft or loose soil. These walls are constructed using interlocking steel or vinyl sheets that are driven into the ground. The sheets create a barrier that prevents the soil from moving or collapsing. Sheet pile retaining walls are often used in waterfront properties, as they can provide effective protection against erosion caused by water currents.

See also  Corner House Design

Anchor-based Retaining Walls

Anchor-based retaining walls are a suitable option for tall or heavily loaded retaining walls. These walls use anchoring cables or rods to provide additional stability and support. The cables or rods are embedded deep into the soil behind the wall and are then tied back into the wall structure, creating a pulling force that opposes the pressure from the soil. This system allows for the construction of higher walls with better stability.

Reinforced Soil Retaining Walls

Reinforced soil retaining walls are constructed using layers of compacted soil and reinforcing elements like geogrids or mesh. These walls utilize the friction and tensile strength created by the reinforcing elements to resist the pressure from the retained soil. Reinforced soil retaining walls can be an economical choice as they use local materials and require less excavation compared to other types of retaining walls.

Hybrid Retaining Walls

Hybrid retaining walls combine different types of retaining wall systems to take advantage of their unique features. For example, a combination of gravity retaining walls and anchor-based retaining walls can create a stable structure suitable for challenging soil conditions and high loads. Hybrid retaining walls offer greater flexibility in design and can be tailored to specific project requirements.


Retaining walls come in various types, each designed to suit specific soil conditions, project requirements, and aesthetic preferences. Whether you need a wall to create terraced plant beds or prevent soil erosion, it's essential to choose the right type of retaining wall. Consulting with a professional engineer or contractor can help ensure you select the most suitable design for your project needs.
